EOTECH OGL Standard Power Laser – IR/Visible Aiming & Illuminator
EOTECH OGL Standard Power Laser – IR/Visible Aiming & Illuminator
Couldn't load pickup availability
EOTECH OGL Standard Power – Advanced On-Gun Laser for MIL/LE Use
Engineered for performance under pressure, the EOTECH OGL Standard Power laser system is the premium choice for military and law enforcement professionals who demand precision, durability, and versatility in high-stress environments.
This on-gun laser features a compact, rugged aluminum housing — roughly the size of a deck of cards — built to endure the most demanding operational conditions. Powered by a single CR123 battery, the OGL provides up to 9 hours of continuous run time, ensuring extended field reliability.
The OGL integrates both visible green and IR aiming lasers using a shared optical bench for enhanced accuracy and alignment. Its VCSEL-based IR illuminator produces a clean, focusable beam with adjustable divergence — from spot (~23 MRAD) to wide-area flood (~115 MRAD) — for optimal target illumination in all environments.
A patent-pending ergonomic lever enables quick, intuitive beam adjustments without sacrificing situational awareness. The unit includes a Modlite ModButton Lite (7") switch and features a Crane-type laser port, offering compatibility with widely used tactical setups.
Built for precision. Designed for professionals. Trusted in the field.

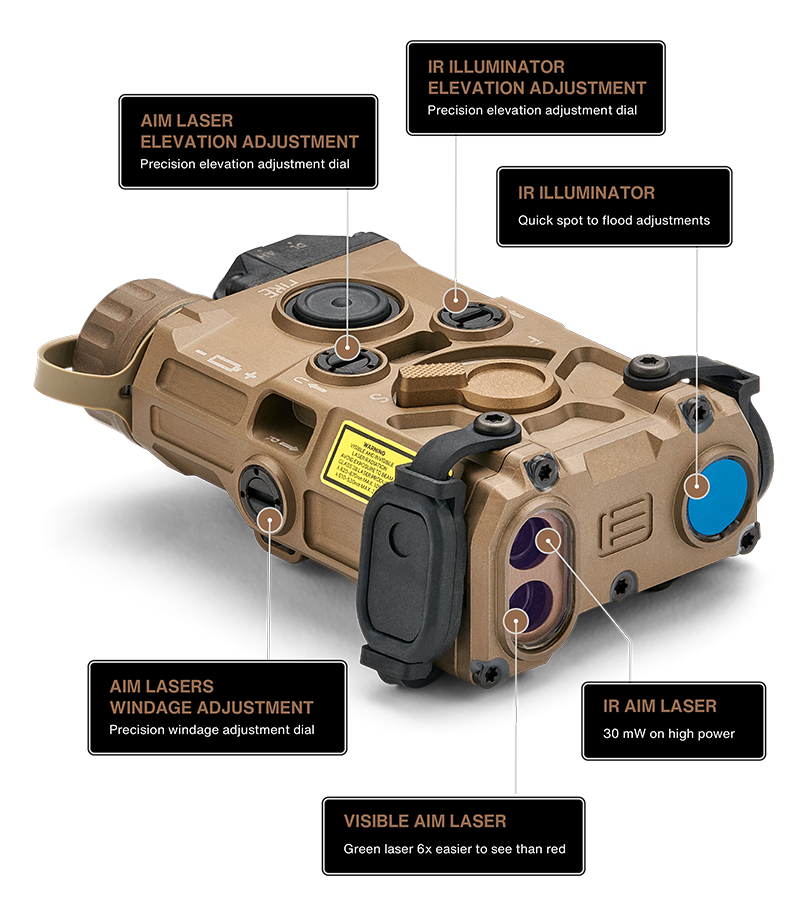

Key Features:
- Standard power (MIL/LE) mode
- All aluminum housing for extreme durability
- Compact design, similar in size to a deck of cards
- Enhanced ergonomics
- Shared optical bench for visible green and IR aiming lasers
- VCSEL Illuminator variable beam divergence: ~23 MRAD to ~115 MRAD
- ~0.2 MRAD windage and elevation adjustments, 50 MRAD total
- Crane-type laser port
- Modlite ModButton Lite 7" switch included
- Tethered protective caps/pattern generators
Visible Aim Laser | Specs at 23°C (72°F) | Max Safety Class |
Output Power Low | ≤ 4.7 mW | 3R |
Output Power High | ≤ 30 mW | 3B |
Beam Divergence | < 0.5 MRAD | |
Wavelength | 520 (±10) nm |
NIR Aim Laser | Specs at 23°C (72°F) | Max Safety Class |
Output Power Low | ≤ 0.7 mW | 3R |
Output Power High | ≤ 35 mW | 3B |
Beam Divergence | < 0.5 MRAD | |
Wavelength | 850 (±10) nm |
NIR Illuminator | Specs at 23°C (72°F) | Max Safety Class |
Output Power Low | ≤ 2.7 mW | 3R |
Output Power High | ≤ 105 mW | 3B |
Beam Divergence | SPOT ≥23, FLOOD ≥105 MRAD | |
Wavelength | 860 (+10/-30) nm |
