NEXT GENERATION AIMING LASER (NGAL)

NEXT GENERATION AIMING LASER (NGAL)

$5,650.00 USD
$5,650.00 USD
Sale Sold out

Available for International Delivery. Ships from EU

Lead Time:4-5 weeks

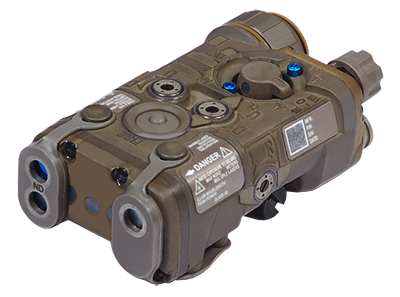

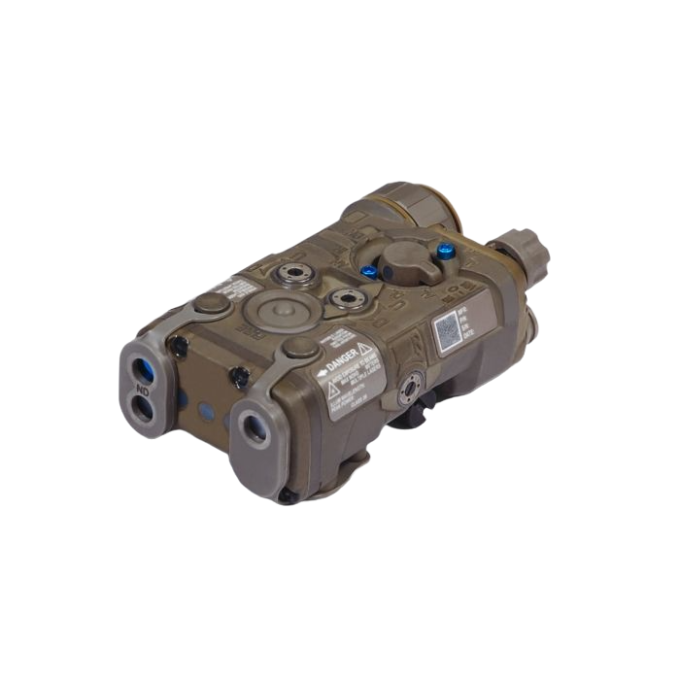

The L3Harris Next Generation Aiming Laser is a rugged, ultra-compact and lightweight system designed to be compatible with all generations of night vision devices.

  • Independent aim and illuminator boresight adjusters
  • Co-aligned aiming beams with boresight retention ≤ 0.5 mrad
  • Power levels adjustable based on customer requirements



Specifications

Dimensions 3.6 in. L x 2.0 in. W x 1.25 in. H
Weight < 5 oz. with battery
Battery Type (1) DL123 or AA
Battery Life 3.5 hrs. in dual high

Visible Aim Laser Specifications at 25 °C (77 °F)
Output Power Low ≤ 4.9 mW / 3R Safety Class
Output Power High ≤ 80 mW / 3B Safety Class
Beam Divergence 0.3 (±0.2) mrad
Wavelength 635 (± 15) nm

IR Aim Laser Specifications at 25 °C (77 °F)
Output Power Low ≤ 0.6 mW / 3R Safety Class
Output Power High ≤ 35 mW / 3B Safety Class
Beam Divergence 0.3 (±0.20) mrad
Wavelength 835 (± 15) nm

IR Illuminator Specifications at 25 °C (77 °F)
Output Power Low ≤ 2.7 mW / 3R Safety Class
Output Power High ≤ 90 mW / 3B Safety Class
Beam Divergence ≤ 15 to ≥ 105 mrad
Wavelength 860 (±15/-35) nm
